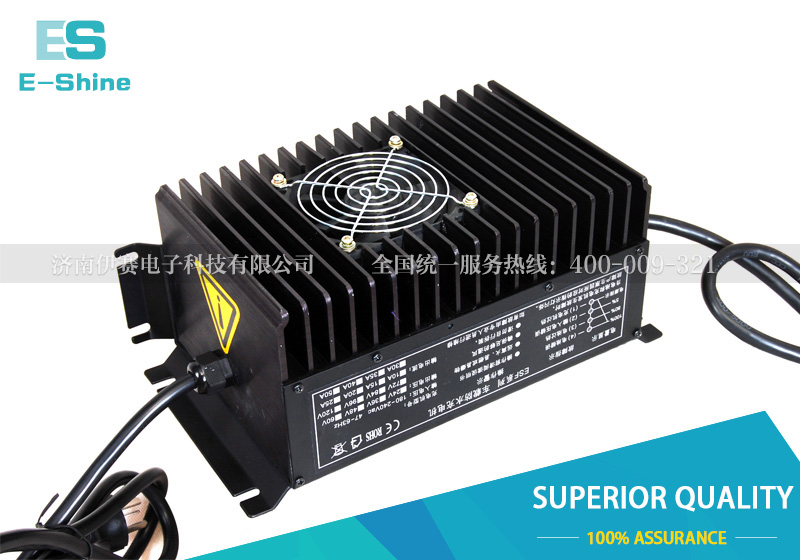

ESFP-2200W防水智能充电器规格表 ESF-2200W(PFC/waterproof)Battery charger datasheet |
|||||||||
|
序号 No. |
规格 Spec |
充电恒压（限压） Constant voltage |
充电恒流 Constant Current |
转换/关断 Conversion/Cut off |
重量 Weight |
尺寸 Size |
|||
|
铅酸 LA |
锰锂 Li-Mn |
铁锂 LiFePo4 |
(限流)A (Max)A |
铅酸(A) LA(A) |
锂电(A) Li(A) |
(kg) | （mm） | ||
| 1 | FP48 | 58.8V | 54.6V | 58.4V | 30 | 6.0 | 3.0 | 6.5 | 306*165*120 |
| 2 | FP60 | 73.5V | 67.2V | 73.0V | 25 | 5.0 | 2.5 | ||
| 3 | FP72 | 88.2V | 84V | 87.6V | 20 | 4.0 | 2.0 | ||
| 特性 | 1 |
全自动、预充、恒流、恒压、恒功率、分段定时多种充电模式选择。可以与BMS实时通信功能 Full automatic,predict,CC,CV,CP,Segmented timing,A variety ofcharging mode selection. Communication with BMS. |
|||||||
| 2 |
转换效率＞88%、高精度电流电压锁定、确保充满、绝无过充 Conversion efficiency>88%,Precise limit of voltage¤t,guarantee full charged and avoid over charger. |
||||||||
| 3 |
过流、过压、短路、反接保护、过热保护、安全可靠 Over current, over voltage, short circuit, reverse connect protection, overheating protection, safe and reliable |
||||||||
| 4 |
指示灯显示、全铝外壳、美观坚固、车载防震、防水等级IP46 LEDdisplay, Aluminum shell, beautiful and strong,Vehicle shock,waterproof grade:IP46 |
||||||||
| 5 |
充电过程智能温度补偿、可避免铅酸蓄电池出现过充或欠充等原因引起的损坏。可大大延长蓄电池的寿命 Intelligenttemperature compensation, can avoid lead-acid battery charging process appear overcharge or owe charge causes damage. Can greatly prolong the life of battery. |
||||||||
| 6 |
欧洲CE、环保ROHS、安全认证、出口品质 CE&RoHS certified,Safety and Hige Quanlity |
||||||||
|
※ 锂电关断电流我公司设定为充电恒流的5%,可根据电池特性设定为充电恒流的3-10%。 ※ Cut-off point Li battery is 5% of CC,and it can be set between 3%-10%. |
|||||||||
