Operate Condition:

    1.Temperature: -10~45 Degree

    2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)

    3.Life Expectancy: 50,000H at 25 Degree

Apply to:

   1. Lead acid/Lithium battery pack

   2. Electrical motorcycle

   3. Electrical Forklift

  4.Electrical Golf Cart

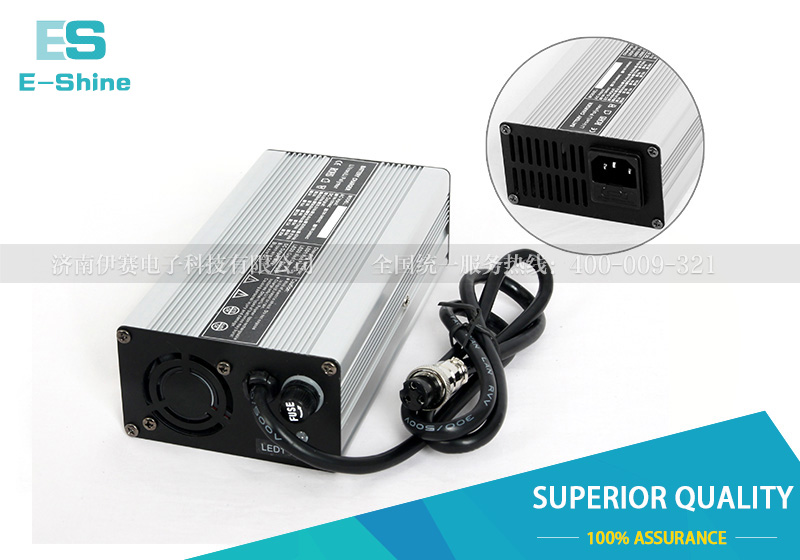

ES-J (240W) Battery Charger Datasheet:


No.	spec	Constant voltage			Constant current	Transition/ Cut-off		Weight	size
		Lead-acid	Li-Mn	Lifepo4	Max (A)	Lead-acid	Li	(kg)	(mm)
1	12V	14.7V	16.8V	14.6V	10	0.2	0.5	1.0	170*90*50
2	24V	29.4V	29.4V	2 9.2V	7	1.4	0.35
3	36V	44.1V	42.0V	43.8V	5	1.0	0.25
4	48V	58.8V	54.6V	58.4V	4	0.8	0.2
5	60V	73.5V	75.6V	73.0V	3	0.6	0.15
6	72V	88.2V	84.0V	87.6V	2	0.4	0.1
Features	1	Full automatic transition of CC, CV and Float/cut-off
	2	Precise limit of voltage & current, guarantee fully charged and avoid over charge
	3	Protections: over current, over voltage, short circuit and reverse polarity
	4	High Efficiency: 95%~98%, PFC: 0.96, eco-friendly
	5	Two LED indicators, Aluminium, elegant and reliable
	6	CE & ROHS Certified, Safety and High Quality
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%.
